UL21294 PLC Control Panel Cable PUR Jacket Rated 80C 600V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

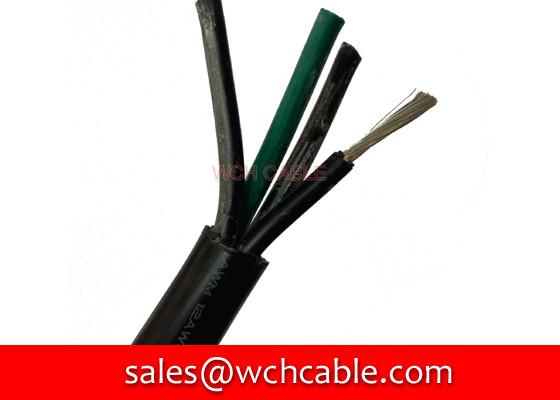

UL21294 PLC Control Panel Cable PUR Jacket Rated 80C 600V

Brand Name : WCH Cable

Model Number : UL21294

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD0.325 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 800,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Style Number : UL21294

Application : PLC Control Panel

Rated Temperature : 80°C

Conductor : Highly Pure Copper Strands

Rated Voltage : 600V

Insulation : AWM Material

FR Grade : VW-1, FT1

Jacket : Polyurethane PUR

Contact Now

UL21294 PLC Control Panel Cable PUR Jacket Rated 80C 600V

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Polyurethane PUR
Standard: Appliance Wiring Material UL758.
Rated Temperature: 80 deg C.
Rated Voltage: 600V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21294 2C 30 7/0.100 0.23 0.80 0.38 3.00 381.00
2C 28 7/0.127 0.23 0.90 0.38 3.30 239.00
2C 26 7/0.16 0.23 1.00 0.38 3.50 150.00
2C 24 11/0.16 0.23 1.10 0.38 3.70 94.20
2C 22 17/0.16 0.23 1.30 0.38 4.10 59.40
2C 20 21/0.178 0.23 1.50 0.38 4.50 36.70
2C 18 34/0.178 0.23 1.80 0.38 5.20 23.20
2C 16 26/0.25 0.23 2.00 0.38 5.60 14.60
3C 30 7/0.100 0.23 0.80 0.38 3.30 381.00
3C 28 7/0.127 0.23 0.90 0.38 3.50 239.00
3C 26 7/0.16 0.23 1.00 0.38 3.70 150.00
3C 24 11/0.16 0.23 1.10 0.38 3.90 94.20
3C 22 17/0.16 0.23 1.30 0.38 4.30 59.40
3C 20 21/0.178 0.23 1.50 0.38 4.80 36.70
3C 18 34/0.178 0.23 1.80 0.38 5.20 23.20
4C 30 7/0.100 0.23 0.80 0.38 3.50 381.00
4C 28 7/0.127 0.23 0.90 0.38 3.80 239.00
4C 26 7/0.16 0.23 1.00 0.38 4.00 150.00
4C 24 11/0.16 0.23 1.10 0.38 4.20 94.20
4C 22 17/0.16 0.23 1.30 0.38 4.70 59.40
4C 20 21/0.178 0.23 1.50 0.38 5.20 36.70
5C 30 7/0.100 0.23 0.80 0.38 3.80 381.00
5C 28 7/0.127 0.23 0.90 0.38 4.20 239.00
5C 26 7/0.16 0.23 1.00 0.38 4.40 150.00
5C 24 11/0.16 0.23 1.10 0.38 4.70 94.20
5C 22 17/0.16 0.23 1.30 0.38 5.30 59.40
6C 30 7/0.100 0.23 0.80 0.38 4.20 381.00
6C 28 7/0.127 0.23 0.90 0.38 4.40 239.00
6C 26 7/0.16 0.23 1.00 0.38 4.70 150.00
6C 24 11/0.16 0.23 1.10 0.38 5.00 94.20

UL21294 PLC Control Panel Cable PUR Jacket Rated 80C 600V

Tag: polyurethane cable, polyurethane jacketed cable


Quality UL21294 PLC Control Panel Cable PUR Jacket Rated 80C 600V wholesale

UL21294 PLC Control Panel Cable PUR Jacket Rated 80C 600V Images
