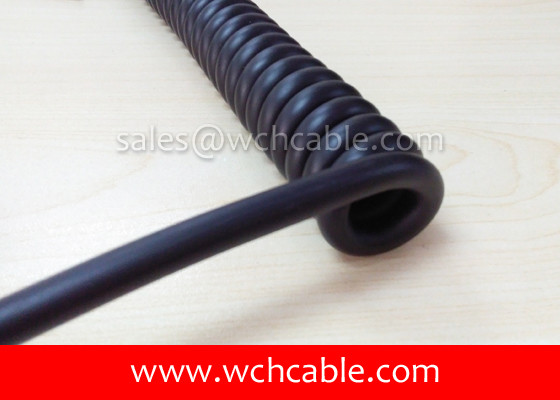

UL21223 POS Device Curly Cable

Brand Name : WCH Cable

Model Number : UL21223

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 200 pcs per box

Price : USD 0.122 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000 pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Style Number : UL21223

Type : Curly Cable

Application : POS Device Connect

Feature : Easy working

Conductor Material : Pure Copper Wire Strands

Standard : AWM

Conductor Gauge : 10-32AWG

Rated Voltage : 1000V

Contact Now

UL21223 POS Device Curly Cable

Rating: 80 deg C, 600/1000 Vac

Conductor Size: 10-32AWG

Conductor Quantity: 2 ~ 50 cores

Insulation Material: Polypropylene PP

Jacket Material: thermoplastic TPU.

Executed Standard: AWM.

Application: POS device connect purpose.

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21223 3C 28 7/0.127 0.76 2.00 0.76 6.33 239.00
3C 26 7/0.16 0.76 2.10 0.76 6.55 150.00
3C 24 11/0.16 0.76 2.20 0.76 6.76 94.20
3C 22 17/0.16 0.76 2.40 0.76 7.19 59.40
3C 20 21/0.178 0.76 2.50 0.76 7.41 36.70
3C 18 34/0.178 0.76 2.80 0.76 8.05 23.20
3C 16 26/0.254 0.76 3.10 0.76 8.70 14.60
4C 28 7/0.127 0.76 2.00 0.76 6.85 239.00
4C 26 7/0.16 0.76 2.10 0.76 7.09 150.00
4C 24 11/0.16 0.76 2.20 0.76 7.33 94.20
4C 22 17/0.16 0.76 2.40 0.76 7.81 59.40
4C 20 21/0.178 0.76 2.50 0.76 8.06 36.70
4C 18 34/0.178 0.76 2.80 0.76 8.78 23.20
4C 16 26/0.254 0.76 3.10 0.76 9.50 14.60
5C 28 7/0.127 0.76 2.00 0.76 7.42 239.00
5C 26 7/0.16 0.76 2.10 0.76 7.69 150.00
5C 24 11/0.16 0.76 2.20 0.76 7.96 94.20
5C 22 17/0.16 0.76 2.40 0.76 8.50 59.40
5C 20 21/0.178 0.76 2.50 0.76 8.77 36.70
5C 18 34/0.178 0.76 2.80 0.76 9.58 23.20
5C 16 26/0.254 0.76 3.10 0.76 10.39 14.60
6C 28 7/0.127 0.76 2.00 0.76 8.02 239.00
6C 26 7/0.16 0.76 2.10 0.76 8.32 150.00
6C 24 11/0.16 0.76 2.20 0.76 8.62 94.20
6C 22 17/0.16 0.76 2.40 0.76 9.22 59.40
6C 20 21/0.178 0.76 2.50 0.76 9.52 36.70
6C 18 34/0.178 0.76 2.80 0.76 10.42 23.20
6C 16 26/0.254 0.76 3.10 0.76 11.32 14.60
7C 28 7/0.127 0.76 2.00 0.76 8.13 239.00
7C 26 7/0.16 0.76 2.10 0.76 8.44 150.00
7C 24 11/0.16 0.76 2.20 0.76 8.74 94.20
7C 22 17/0.16 0.76 2.40 0.76 9.35 59.40
7C 20 21/0.178 0.76 2.50 0.76 9.66 36.70
7C 18 34/0.178 0.76 2.80 0.76 10.58 23.20
7C 16 26/0.254 0.76 3.10 0.76 11.49 14.60
8C 28 7/0.127 0.76 2.00 0.76 8.55 239.00
8C 26 7/0.16 0.76 2.10 0.76 8.88 150.00
8C 24 11/0.16 0.76 2.20 0.76 9.21 94.20
8C 22 17/0.16 0.76 2.40 0.76 9.86 59.40
8C 20 21/0.178 0.76 2.50 0.76 10.19 36.70
8C 18 34/0.178 0.76 2.80 0.76 11.17 23.20
9C 28 7/0.127 0.76 2.00 0.76 8.95 239.00
9C 26 7/0.16 0.76 2.10 0.76 9.30 150.00
9C 24 11/0.16 0.76 2.20 0.76 9.64 94.20
9C 22 17/0.16 0.76 2.40 0.76 10.34 59.40
9C 20 21/0.178 0.76 2.50 0.76 10.68 36.70
